Level Switches

We are the leading supplier and distributor of Level Switches to our valuable clients.

Magnetic Level Switch

REQUEST CALLBACK

Magnetic Level Switch
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 950 / PieceGet Latest Price

Product Details:
Switch Rating5 Amps at 230 VAC
Type of Switch1 No. Change over Micro Switch
Specific gravityDown to 0.75
Current Rating0.5 AMP
Switch ConfigurationSPST
BrandSahana Engineering

We are offering Magnetic Level Switch. Highly admired for their perfect finish these switches are sternly examined on several parameters by our quality auditors prior to dispatch defect free product at the client's end. Our clients can avail these switches from us at reasonable rates.

Features:

  • Rigid design
  • Easy maintenance
  • Detects liquid levels
  • Easy to operate


Applications:
Due to simple design, reliability and with only one moving part i.e., Magnetic float, Magnetic Level Switch finds application in various liquids where accurate and repeated liquid level control is called for.Magnetic Level Switch is suitable for storage tanks, utility tanks, process tanks, hydraulic power pack, centralized lubrication system, fuel tanks, cooling tower, textile, pharmaceuticals and special purpose machines.





Yes! I am Interested

View PDF

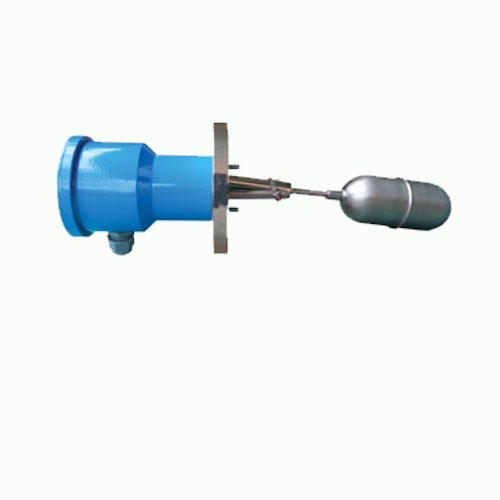

Horizontal Float Switch

REQUEST CALLBACK

Horizontal Float Switch
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 2,500 / NumberGet Latest Price

Product Details:
Minimum Order Quantity1 Number
Usage/ApplicationHorizontal / As per customer requirement.
Current RatingAs per customer requirement.
Media TypeLiquid
Mounting OptionsSide Mount
Material/BodyMetal
Model No.HFST - SS

We are offering Horizontal Float Switch. These switches are suitable for sensing liquid level in tanks. Our customers can avail these switches at market fairish price rates. Horizontal Float Switch can be used for a long time after its being installed.

Features:
  • Reliable
  • Available in different MOC
  • Tear resistance
  • Perfect finishing

Principle
:
  • The float lever carries a permanent magnet which is repelled by similar magnet mounted in the switch housing
  • The magnet having the same pole directed towards each other are separated by a non magnetic diaphragm
  • The gland less construction offer excellent sealing

Construction:

It consists of 3 main parts:
  • Housing with Micro Switch
  • Mounting Flange
  • Float Assembly

Other Details:
  • Easy to install
  • Reliable
  • Available with different flange size
  • Available in different MOC

Applications:
  • Water
  • Oil
  • Fuels
  • Chemical
  • Solvents
  • Syrup etc


Additional Information:

  • Pay Mode Terms: T/T (Bank Transfer),Other
Yes! I am Interested

Mini Conductivity Type Point Level Switch

REQUEST CALLBACK

Mini Conductivity Type Point Level Switch
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 4,950 / NumberGet Latest Price

Product Details:
Minimum Order Quantity1 Number
Mounting Optionsside mount,top mount
Level Measurement TypePoint Level
Media TypeLiquid
Switching Voltage24 V DC.
Material/Bodystainless steel
Switch TypeSPST
BrandSahana Engineering
Mounting OptionSide Mount, Top Mount

Applications:
Conductive liquids like - Water, Fruit Juice & Chemicals.

Type Of Industries:
Waste Water Treatment Plants, Hydro Power Projects, Food Processing, Power Generation, Chemicals, Minerals.



Additional Information:

  • Item Code: MMCLS
  • Pay Mode Terms: T/T (Bank Transfer),Other
  • Production Capacity: As per customer requirement.
  • Delivery Time: 1-2 weeks.
Yes! I am Interested

Conductivity Level Switches

REQUEST CALLBACK

Conductivity Level Switches
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 4,500 / PieceGet Latest Price

Product Details:
Minimum Order Quantity1 Piece
Mounting OptionsOther
Media TypeLiquid
Switch TypePNP
Material/BodyMetal
BrandOther
Model No.Marine
Power/Voltage24VDC

Product Details:

Minimum Order Quantity1 Number
Mounting OptionTop Mount, Side Mount
Level Measurement TypePoint Level
Switch TypeSPST
Switching Voltage24 V DC.
BrandSahana Engineering
Mounting Optionsside mount,top mount
Material/Bodystainless steel
Media TypeLiquid

Applications:
Conductive liquids like - Water, Fruit Juice & Chemicals.

Type Of Industries:
Waste Water Treatment Plants, Hydro Power Projects, Food Processing, Power Generation, Chemicals, Soap and Detergents.

Request
Callback



Yes! I am Interested

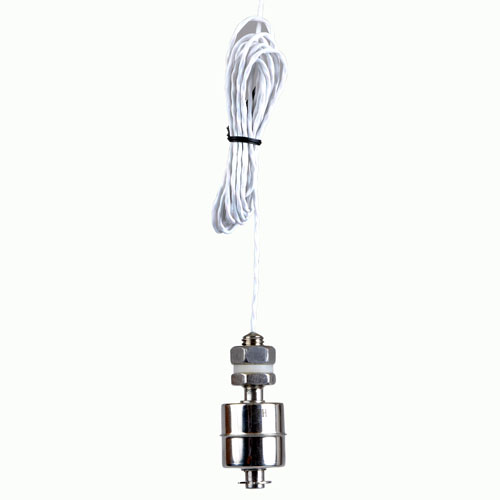

Miniature Level Switch

REQUEST CALLBACK

Miniature Level Switch
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 500 / PieceGet Latest Price

Product Details:
Mounting OptionsTop Mount
Material/BodyMetal,Plastic
BrandSahana Engineering
Usage/ApplicationWater, Oil, Diesel, Chemical
Model No.MFLS

We are offering Miniature Level Switch. Offered switch is a compact construction, suitable for mounting vertically. These are used in various industries as equipment. Tested on various quality parameters, our switches are available at nominal rates to the clients.

Features:
  • Ergonomic design
  • Optimum performance
  • Enhanced durability
  • Lightweight

Applications:
  • Water
  • Diesel
  • Hydraulic Oil
  • Edible Oil
  • Chemicals & Pharma

Technical Specifications:

Probe LengthUp to 1000mm
FloatPP, SS 316
Switching rating24 V DC, 230VAC
No. of Switch Levels1 to 2
MountingFlange, Threaded
Material of constructionSS 304, SS 316
Maximum Temperature125oC
Maximum Pressure10kg/cm2


Additional Information:

  • Item Code: 9026
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: By Road / By Air.
  • Production Capacity: Any.
  • Delivery Time: As per our MOM / discussion terms.
  • Packaging Details: Good Quality standard packing with nice look.
Yes! I am Interested

View PDF

Capacitance Type Point Level Switch

REQUEST CALLBACK

Capacitance Type Point Level Switch
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 7,850 / per noGet Latest Price

Product Details:
Minimum Order Quantity1 per no
Voltage24V AC/ DC
MaterialMild Steel
Mounting OptionsTop Mount
Media TypeLiquid
BrandSahana Engineering

Application:
Food Grain, Plastic Chips, Wood Chips, Saw Dust, Sugar, Cement, Oil, Detegents, Wheat Flour, Chemical Powders, Detection of Liquids in pipe line,Etc...



Additional Information:

  • Item Code: MCPLS
  • Pay Mode Terms: T/T (Bank Transfer),Other
  • Port of Dispatch: Any
  • Delivery Time: Immediate
  • Packaging Details: Standard Packing with Bubble paper & Cardboard Box.
Yes! I am Interested

Vibrating Level Switch

REQUEST CALLBACK

Vibrating Level Switch
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 6,500 / NumberGet Latest Price

Product Details:
Minimum Order Quantity1 Number
Output Limit250 mA
Power Supply12-60 V DC
Switch TypeVibrating
Mounting OptionsTop Mount
BrandSahana Engineering

Applications:
For hydroscopic powders, cement, powdered milk, detergent, salt, grains, tobacco, pulses, tea, coffe, coffe beans, choclate powder, soda ash, coal powder, plastic pallets, potato chips, animal feeds, powderd chemicals, beans, peanuts, sweets & candy, wood shavings, chack, charcoal, styrofoam's,glass fine powder, sugar, tobacco, powdered cellulose, powdered clay, polystyrene powder, dry soot, foundary sand, etc....


Additional Information:

  • Item Code: VRLS
  • Pay Mode Terms: T/T (Bank Transfer),Other
Yes! I am Interested

Retro Reflective Optic Level Switch

REQUEST CALLBACK

Retro Reflective Optic Level Switch
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 4,950 / NumberGet Latest Price

Product Details:
Minimum Order Quantity1 Number
Voltage24V AC/ DC
Frequency50 Hz
Mounting OptionsTop Mount
Media TypeLiquid
BrandSahana Engineering

Applications:
Liquids like Beer, Glucose, Alcohol, Petrol, Diesel, Oil, Fruit Juice, Water, Chemicals, Honey, Serated Drinks, Etc.

Type Of Industries:
Breweries, Water & Waste Water Management, Petrochemicals, Food Processing, Pharamaceuticals, Cosmetics, Edible Oil, Chemical, Machine Building.



Additional Information:

  • Item Code: RRROLC
  • Pay Mode Terms: T/T (Bank Transfer),Other
Yes! I am Interested

Vibrating Fork Level Switch

REQUEST CALLBACK

Vibrating Fork Level Switch
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 6,000 / PER NOGet Latest Price

Product Details:
Minimum Order Quantity1 PER NO
OutputNPN
TemperatureUp to 250 to 300 degree on requesting.
BrandSahana Engineering
Mounting OptionSide Mount
Level Measurement TypePoint Level
Model No.Liquitune
Operating Voltage12 - 30 V DC.
Current Rating3 Amps.



Additional Information:

  • Pay Mode Terms: T/T (Bank Transfer),Other
  • Production Capacity: As per customer requirement
  • Delivery Time: 1 - 2 weeks.
  • Packaging Details: As per Standard.
Yes! I am Interested

View PDF

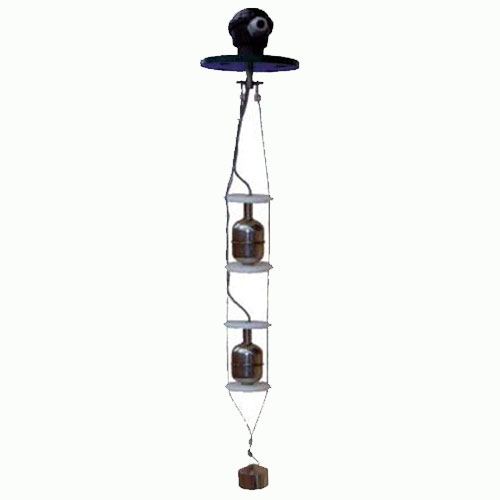

Adjustable Level Switch

REQUEST CALLBACK

Adjustable Level Switch
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 2,500 / PieceGet Latest Price

Product Details:
Switching VoltageNA
Level Measurement TypeMulti-Point Level, Point Level
Media TypeLiquid
Working PressureUSED IN WATER

We are offering Adjustable Level Switch. These switches are used for controlling the water level in fountains, aquariums, washing tanks etc. We can provide these switches with different technical specifications and are easy to installation.

Features:
  • Corrosion resistance
  • Precise design
  • Optimum Performance
  • Low maintenance

Electrical Rating:
  • Max. Voltage : 24V AC / DC
  • Max. current : 0.5A

Mechanical Rating :
  • Max. temperature: 80oC
  • Max. pressure: Atmospheric
  • Float: SS 316
  • Rope: SS 316
  • Dead weight: SS 316
  • Adjustable Disc: PP
  • Cable: PVC
Yes! I am Interested

View PDF
