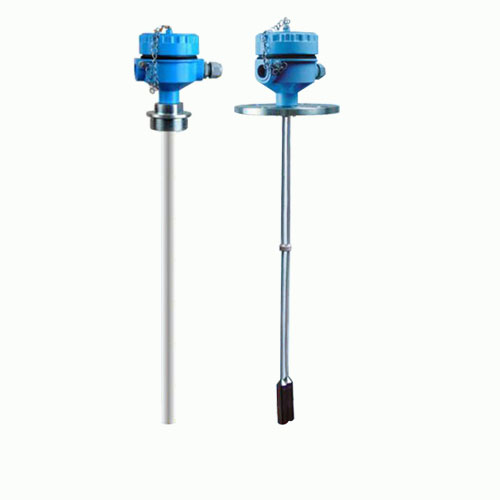

Level Transmitters

We are the leading supplier and distributor of Level Transmitters to our valuable clients.

Capacitance Level Transmitter

REQUEST CALLBACK

Capacitance Level Transmitter
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 5,000 / PieceGet Latest Price

Product Details:
BrandSahana Engineering
TemperatureUpto 300 Degree
ApplicationsLiquid, Acid, Milk, Chemical, Oil, Diesel
Process pressureMax 20 bar
Process ConnectionFlange

We are providing Capacitance Level Transmitter to our esteemed customers. These transmitters are commonly used for sensing the interface between two immiscible liquids in the machine. In addition to this, the offered Capacitance Level Transmitter is made available with us at rock bottom prices.

Features:
  • Easy to install
  • Long functional life
  • Excellent design
  • High quality



Technical Specification:

Type

2 Wire (Loop powered), 3 wire (Non isolated), 4 wire (Isolated) 4-20 mA

Input

24V Dc

Permissible Load

500Ω

Measuring Rage

200 mm to 3000 mm in Rigid Probe Upto 15000 mm in Flexile Probe

Pressure Max.

5kg / cm 2

Temperature

-25 to 100oC

Enclosure

Die Cast aluminium, Weatherproof or Flameproof

Resolution

5mm

Accuracy

0.5 % Fs

Mounting

Threaded -½" / 1" / 2" bspm or Npt Flant - 1" /2" Asa/Ansi/Jis/din

Mounting

SS 304 or SS 316

Yes! I am Interested

View PDF

Float Operated Level Transmitter

REQUEST CALLBACK

Float Operated Level Transmitter
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 5,000 / PieceGet Latest Price

Product Details:
Minimum Order Quantity1 Piece
BrandSahana Engineering
Power SupplyDC 24 V
Vibration10 g
Process Pressuremax 3 bar
Temperature Range-40 to -80 deg C

We are offering Float Operated Level Transmitter. These transmitters consist of chamber and float assembly in the non-magnetic material to achieve undisturbed flux. Our range of transmitters is high on demand among patrons due to its embellished features.

Features:
  • High Durability
  • Accuracy
  • Hassle-free performance
  • Low maintenance

Technical Specifications:
Overall Length300 mm to 5000mm
Measuring Error±0.25 % or Span
Output Temperature Co-efficient±0.007% / oC
Resolution5mm / 10mm
Ambient Temperature40oC to 60oC
Liquid Temp. Range40oC to 120oC
Liquid Min. Density0.8 gm/cc
Max. Pressure10 kg/cm2
Protection categoryWeatherproof Ip66 to IS: 2147 (or) Flame Proof Gr. IIA & IIB to IS: 2148
TerminalsMax. 1.5mm2 Flexible
Cable EntryPG11 for weather Proof ¾" Et for Flameproof (Glands not supplied)
Current Output2 wire, 4, 20 A, 3 wire, 0-10 Vdc
Process ConnectionThreaded Flanged Tri-clamp Others
Excitation Voltage10-36 V DC
Loop ResistanceMax. 1200 Ohms


Additional Information:

  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: By Road / By Air.
  • Production Capacity: As per customer requirement.
  • Delivery Time: As per our MOM / discussion.
  • Packaging Details: Standard packing.
Yes! I am Interested

Submersible Level Transmitter

REQUEST CALLBACK

Submersible Level Transmitter
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 11,500 / PieceGet Latest Price

Product Details:
BrandSahana Engineering
Beam angle5 degrees
Power supply6 to 28 V
MaterialStainless steel
RangeUp to 70 m

We are offering Submersible Level Transmitter to our customers. These products are high-performance pressure sensor as sensing elements and available at affordable rates in the market. These are widely used for the liquid measure and control of petroleum, power station, city water supply and drainage.

Features:

Robust constructionLeakage proofConvenient to useDimensionally accurate

Technical Specifications:

Measuring ranges0~0.2, 0~200 mH2OOutput signal4~20 mA (standard), 0~5 V or 0~10 VTransducer output(~80 mV) available on requestAccuracy0.1 %fs, 0.25 %fs (standard), 0.5 %fsCompensated temperature ranges0~50 oCMaterials316L (pressure membrane); 316 (housing)Constructionintegrated construction, rigid and robustHousing environment protectionIP 68

Yes! I am Interested

View PDF

Ultrasonic Level Transmitter

REQUEST CALLBACK

Ultrasonic Level Transmitter
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 18,500 / PieceGet Latest Price

Product Details:
BrandSahana Engineering
Accuracy0.2 %
Voltage12-24 V DC
Beam Angle8 deg
Power SupplyDC 24 V

We are offering Ultrasonic Level Transmitter.

Features:

  • Low maintenance
  • Lightweight
  • High strength
  • Robust construction



Yes! I am Interested
